Skill Machines: Temporal Logic Skill Composition in RL

Paper at ICLR 2024 Poster #17719

RL Multi Task Transfer Learning Temporal Logic Composition Zero-shot Few-shot

24 Aug, 2025

Abstract

We introduce Skill Machines; finite-state machines that encode a sequence of skill compositions to satisfy temporal-logic tasks with guarantees. Starting from a task specified in linear temporal logic (LTL), we plan over its reward machine, then act greedily with respect to composed value functions to obtain zero-shot policies that are near-optimal and satisficing. We further show how these policies seed few-shot optimal learning using any off-policy RL algorithm.

Motivation: Multipurpose Robots Need Compositionality

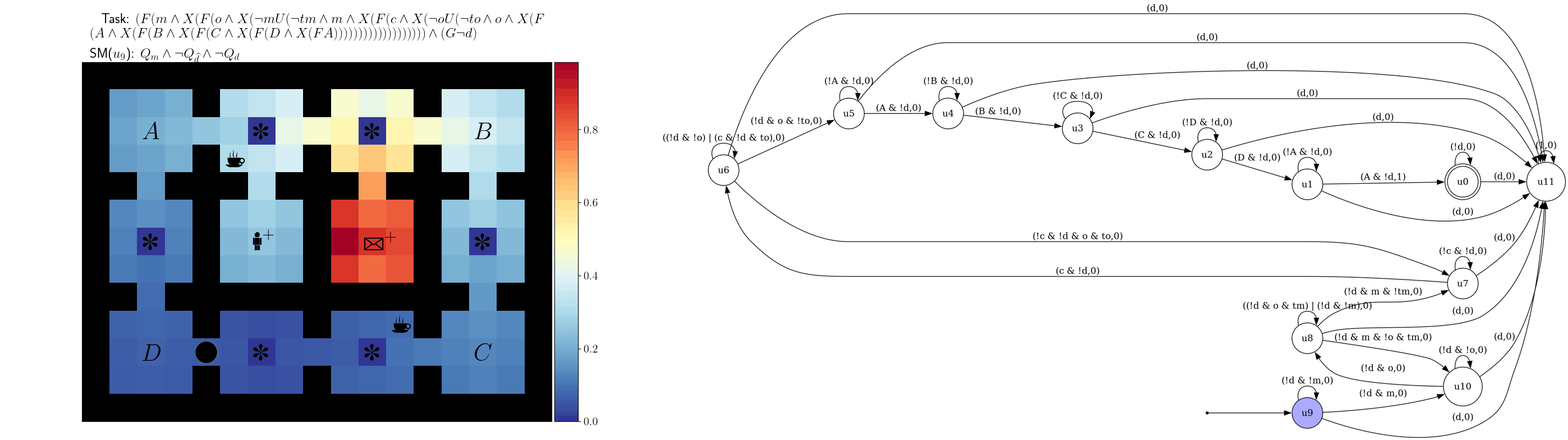

Imagine a service robot in an office world: Deliver mail until none is left, then deliver coffee while people are present, then patrol rooms A-B-C-D-A, and never break a decoration. We want tasks to be human-understandable and solvable without relearning each time a new specification is presented.

Challenges. (i) Reward design requires expertise; (ii) RL is sample-inefficient; (iii) When tasks are given in temporal logic, naive chaining of skills fails due to spatial and temporal curses of dimensionality.

Tasking with Temporal Logic

We use a formal language such as LTL with familiar operators: $\neg$ (NOT), $\land$ (AND), $\mathsf{X}$ (Next), $\mathsf{F}$ (Eventually), $\mathsf{G}$ (Always), etc.

Example: Navigate to a button then to a cylinder while never entering blue regions. LTL over high-level events $\mathcal{P}=\{\text{button},\text{cylinder},\text{blue}\}$ in a Safety-Gym-like world: $\\$ $\mathsf{F}(\text{button}\;\land\;\mathsf{X}\;(\mathsf{F}\;\text{cylinder}))\;\land\;\mathsf{G}\neg\text{blue}$.

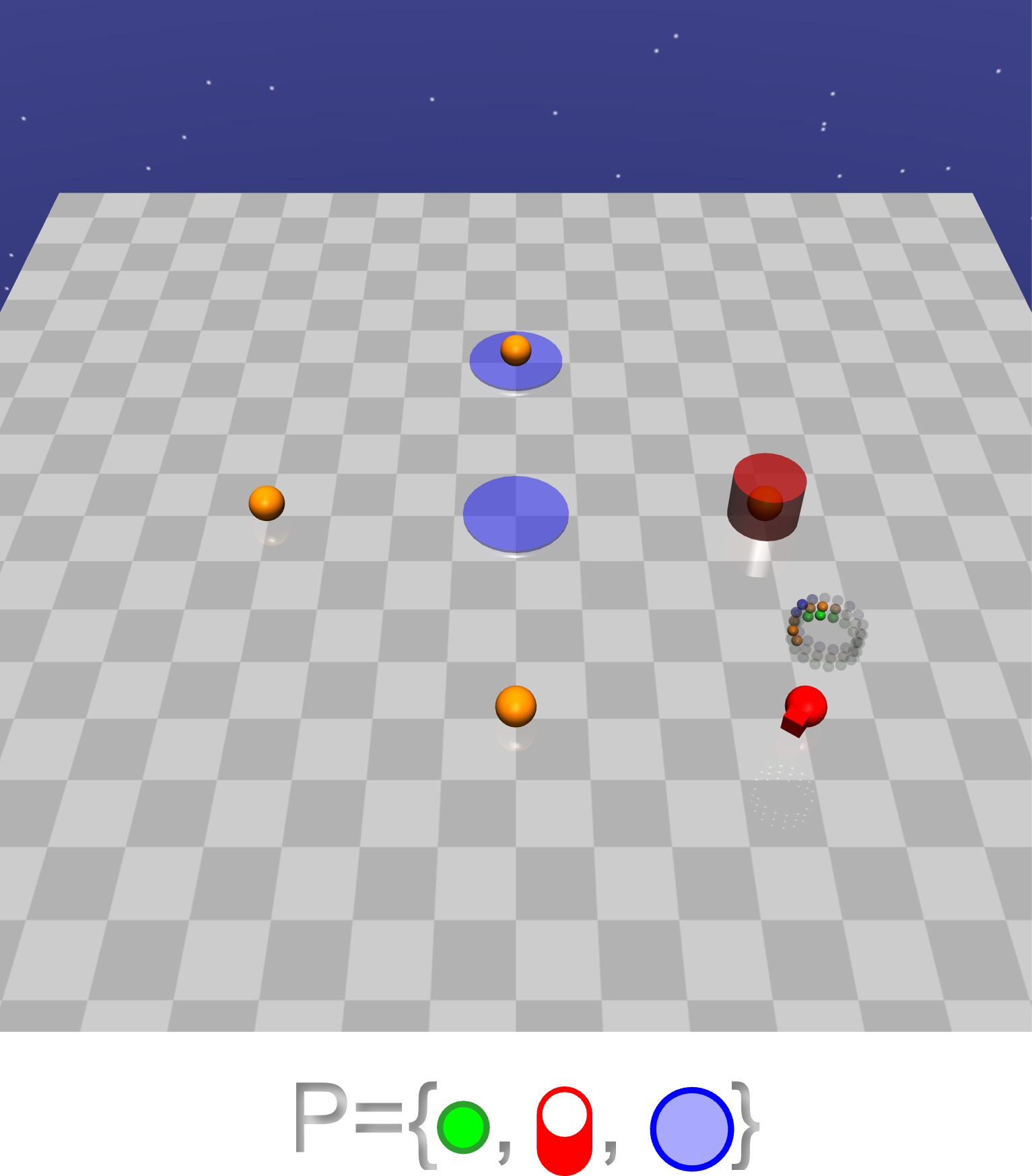

Safety-Gym style environment with button, cylinder, and blue region

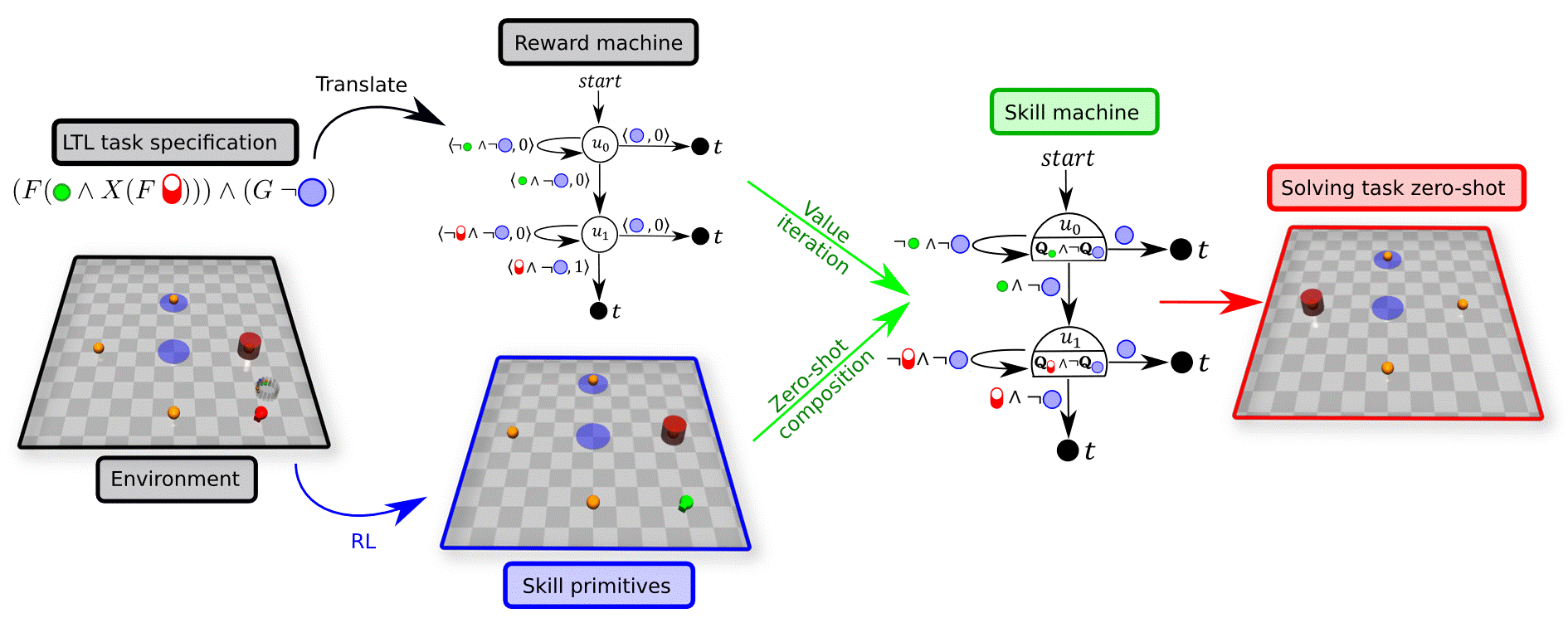

From LTL to Reward Machines

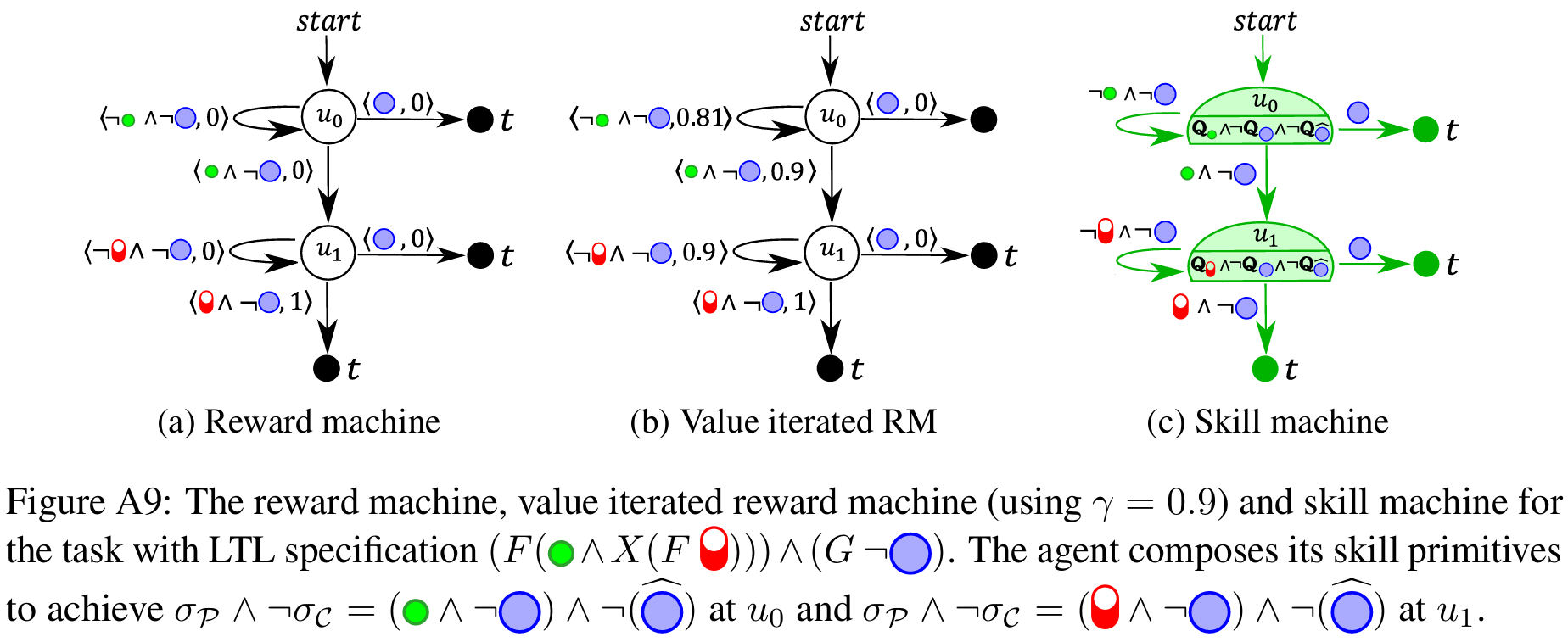

LTL specifications can be compiled into reward machines (finite-state automata whose transitions carry rewards). Planning (e.g., value iteration) over the reward machine reveals which skill to execute at each automaton node.

The Roadblock: Two Curses of Dimensionality

If an agent only learns atomic skills (e.g., go to button, go to cylinder), it cannot immediately solve tasks such as go to button while avoiding blue. In general,

Spatial curse $2^{2^\mathcal{P}}$: there are super-exponentially many Boolean expressions the agent may need to eventually satisfy, and
Temporal curse $2^{2^\mathcal{P}}$: there are super-exponentially many Boolean expressions it may need to always satisfy.

Our Solution: Composable Primitives for Spatial and Temporal Structure

Spatial: Task & Skill Primitives

Task primitives $\mathcal{M}$: composable MDPs for eventually satisfying each proposition.
Skill primitives $\mathcal{Q}$: World Value Functions (WVFs) for each task primitive.

Temporal: Constraints

We augment the state of task primitives with constraints $\mathcal{C}$; propositions that must remain True/False over an episode. This lets us reuse the same spatial skills under always-avoid/always-maintain requirements.

Unlike regular value functions, WVFs are composable: we can compute the value of any Boolean expression over task primitives without further learning.

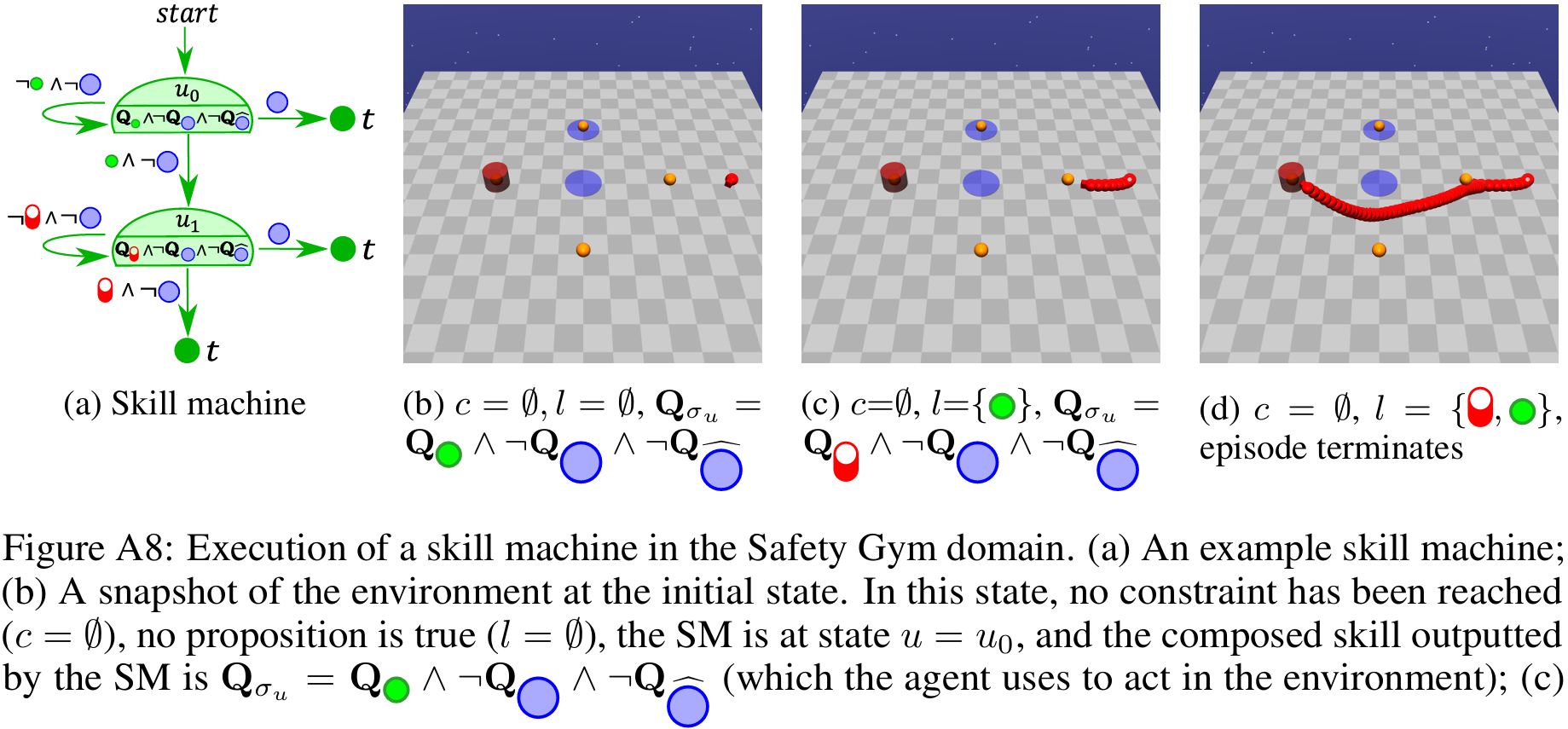

Skill Machines

A Skill Machine (SM) is a finite-state controller that encodes the sequence of composed skill primitives to satisfy a temporal logic task.We obtain SMs by:

Planning over the reward machine (e.g., value iteration) to compute transition values.
Greedily selecting the Boolean subgoals to pursue at each node.

The resulting policy executes skills greedily with respect to the composed WVFs at each node. This yields zero-shot satisfaction with near-optimal performance under mild reachability assumptions.

Zero‑shot Transfer

Once the SM is built, the agent can immediately solve new tasks such as: Go to a hazard, then to a cylinder, then again to a cylinder, while avoiding hazards. No additional learning is required.

Few‑shot Optimality via Off‑policy RL

Zero-shot policies from SMs provide strong initial performance. To reach task-specific optimality when assumptions are violated, we continue learning few-shot with any off-policy method (e.g., Q-learning), using the SM as guidance.

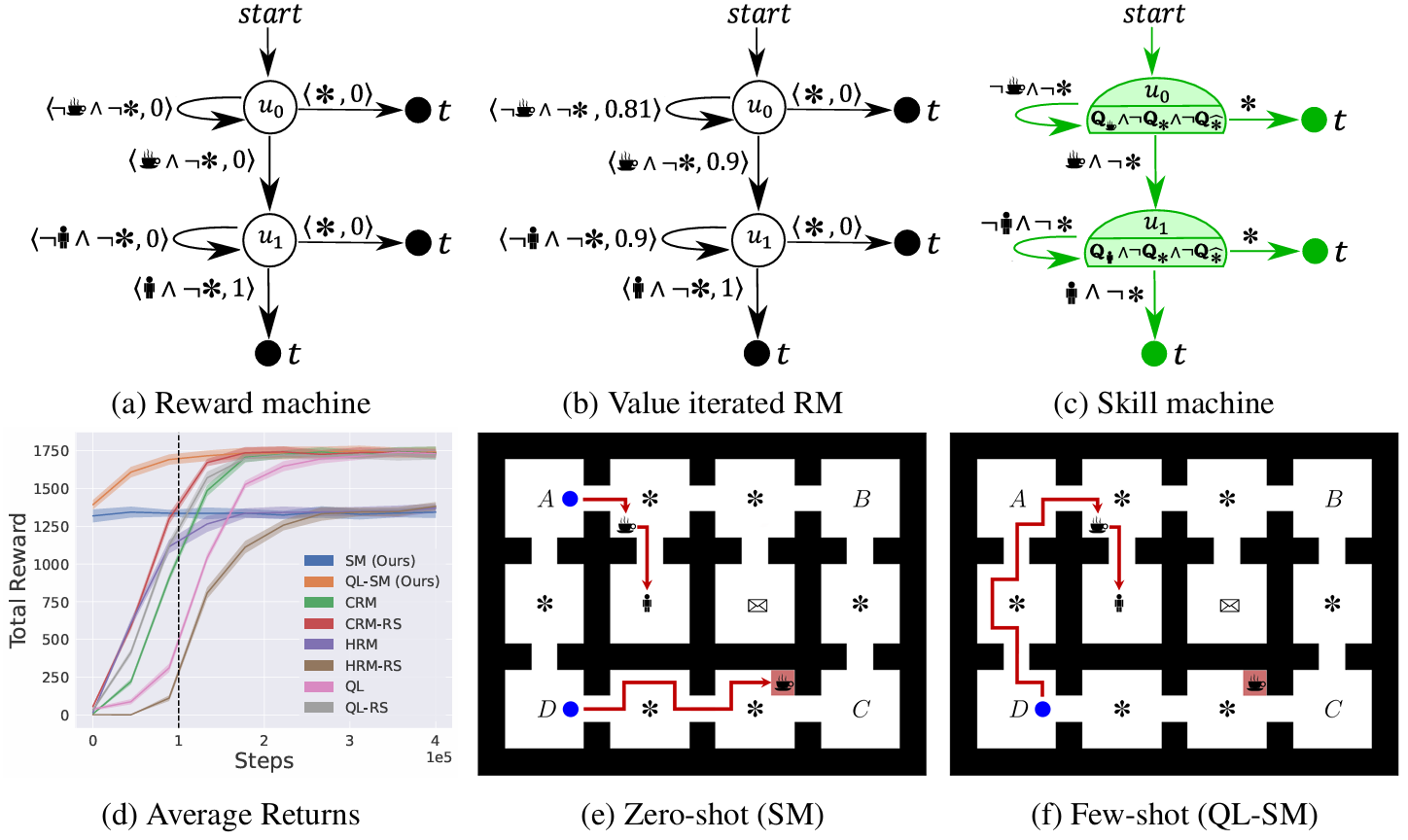

In office world tasks (e.g., deliver coffee and never break a decoration), QL-SM improves upon the zero-shot SM and reaches optimal performance; SM and QL-SM outperform representative baselines.

Why HRMs can struggle, and SMs shine. When success is extremely unlikely, purely model-free methods (e.g., CRM, Q-learning) rarely finish episodes. Skill Machines leverage temporal composition and WVFs to act effectively from the start.

Takeaways

Zero-shot, near-optimal temporal & concurrent composition via WVF-based Skill Machines.
Derived directly by planning over reward machines; satisfaction guarantees.
Few-shot fine-tuning yields task-optimal policies with standard off-policy RL.

References

Camacho, A. et al. LTL and Beyond: Formal Languages for Reward Function Specification in RL (IJCAI, 2019).
Icarte, R. T. et al. Reward Machines for High-level Task Specification and Decomposition (ICML, 2018).
Nangue Tasse, G. et al. World Value Functions (RLDM, 2022).
Nangue Tasse, G. et al. A Boolean Task Algebra for RL (NeurIPS, 2020).
Liu, J. X. et al. Skill Transfer for Temporally-Extended Task Specifications (arXiv, 2022).

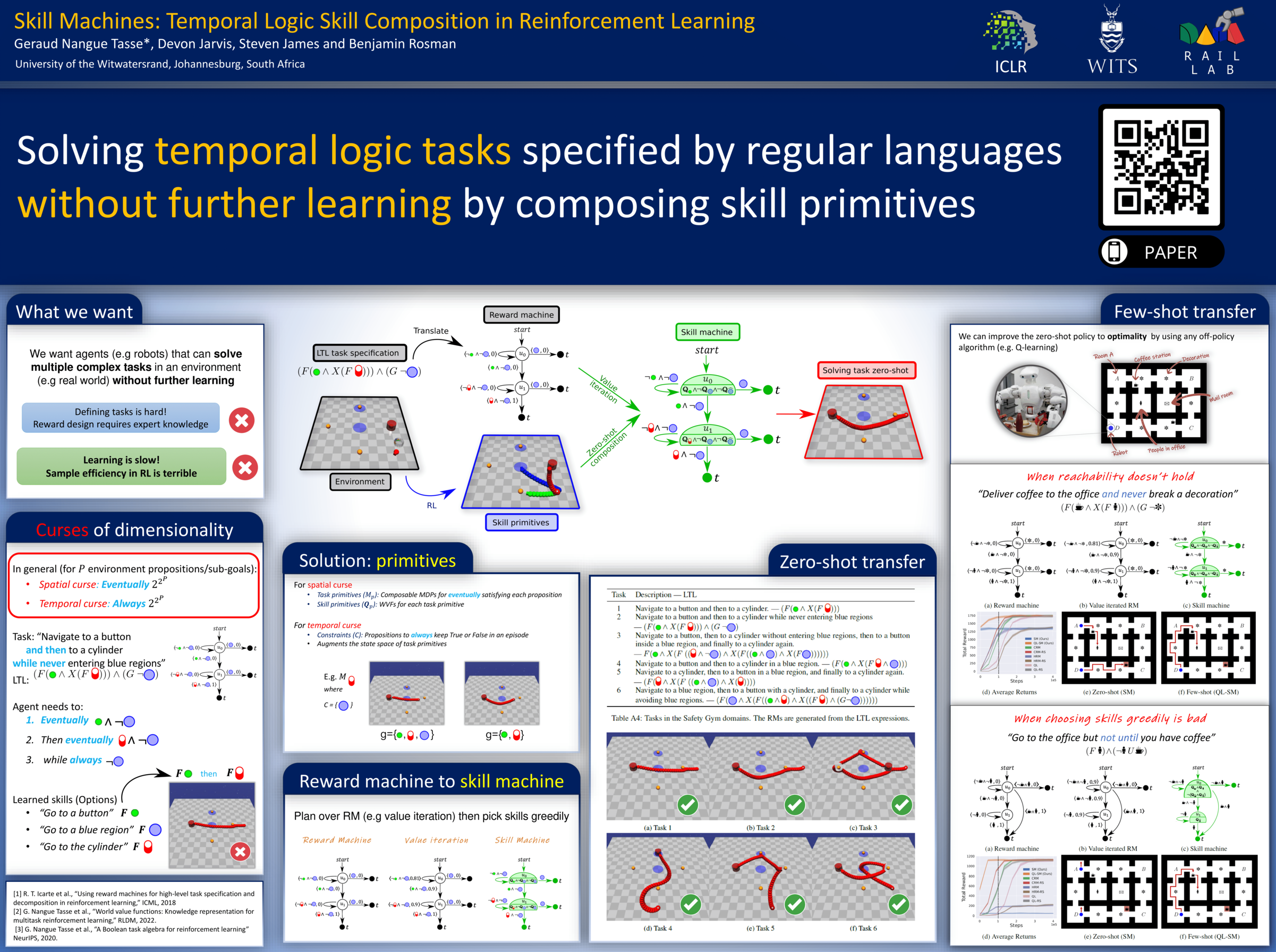

Download the ICLR 2024 Poster (PNG)
